• ERON

RoHS対応

フリーブラケット

E-9792

  • フリーブラケット PIC1

  • フリーブラケット PIC1

仕様/価格

No.が決まったら、在庫情報・CADデータ・製品BOXから詳細確認や問い合わせに進めます。
タイプ A B C D E F G 価格
SS400 100,125,150 50,75,100 100,125,150 10,12 40,80,120 40,80 6 29,500
SS400 100,125,150 50,75,100 100,125,150 15 40,80,120 40,80 9 37,000
SS400 100,125,150 50,75,100 100,125,150 20 40,80,120 40,80 12 49,300
SS400 100,125,150 50,75,100 175,200 10,12 40,80,120 40,80 6 34,600
SS400 100,125,150 50,75,100 175,200 15 40,80,120 40,80 9 43,100
SS400 100,125,150 50,75,100 175,200 20 40,80,120 40,80 12 58,000
SS400 100,125,150 125,150 100,125,150 10,12 40,80,120 40,80,120 6 44,400
SS400 100,125,150 125,150 100,125,150 15 40,80,120 40,80,120 9 56,000
SS400 100,125,150 125,150 100,125,150 20 40,80,120 40,80,120 12 74,500
SS400 100,125,150 125,150 175,200 10,12 40,80,120 40,80,120 6 52,000
SS400 100,125,150 125,150 175,200 15 40,80,120 40,80,120 9 64,500
SS400 100,125,150 125,150 175,200 20 40,80,120 40,80,120 12 86,500
SS400 175,200 50,75,100 100,125,150 10,12 40,80,120,160 40,80 6 34,600
SS400 175,200 50,75,100 100,125,150 15 40,80,120,160 40,80 9 43,100
SS400 175,200 50,75,100 100,125,150 20 40,80,120,160 40,80 12 58,000
SS400 175,200 50,75,100 175,200 10,12 40,80,120,160 40,80 6 39,400
SS400 175,200 50,75,100 175,200 15 40,80,120,160 40,80 9 49,300
SS400 175,200 50,75,100 175,200 20 40,80,120,160 40,80 12 65,500
SS400 175,200 125,150 100,125,150 10,12 40,80,120,160 40,80,120 6 52,000
SS400 175,200 125,150 100,125,150 15 40,80,120,160 40,80,120 9 69,500
SS400 175,200 125,150 100,125,150 20 40,80,120,160 40,80,120 12 86,500
SS400 175,200 125,150 175,200 10,12 40,80,120,160 40,80,120 6 59,500
SS400 175,200 125,150 175,200 15 40,80,120,160 40,80,120 9 74,500
SS400 175,200 125,150 175,200 20 40,80,120,160 40,80,120 12 98,500
SS400 225,250 50,75,100 100,125,150 10,12 40,80,120,160 40,80 6 39,400
SS400 225,250 50,75,100 100,125,150 15 40,80,120,160 40,80 9 49,300
SS400 225,250 50,75,100 100,125,150 20 40,80,120,160 40,80 12 65,500
SS400 225,250 50,75,100 175,200 10,12 40,80,120,160 40,80 6 44,400
SS400 225,250 50,75,100 175,200 15 40,80,120,160 40,80 9 56,000
SS400 225,250 50,75,100 175,200 20 40,80,120,160 40,80 12 74,500
SS400 225,250 125,150 100,125,150 10,12 40,80,120,160 40,80,120 6 59,500
SS400 225,250 125,150 100,125,150 15 40,80,120,160 40,80,120 9 74,500
SS400 225,250 125,150 100,125,150 20 40,80,120,160 40,80,120 12 98,500
SS400 225,250 125,150 175,200 10,12 40,80,120,160 40,80,120 6 66,000
SS400 225,250 125,150 175,200 15 40,80,120,160 40,80,120 9 82,500
SS400 225,250 125,150 175,200 20 40,80,120,160 40,80,120 12 112,000
SS400 275,300 50,75,100 100,125,150 10,12 40,80,120,160,200,240 40,80 6 45,400
SS400 275,300 50,75,100 100,125,150 15 40,80,120,160,200,240 40,80 9 56,000
SS400 275,300 50,75,100 100,125,150 20 40,80,120,160,200,240 40,80 12 74,500
SS400 275,300 50,75,100 175,200 10,12 40,80,120,160,200,240 40,80 6 49,300
SS400 275,300 50,75,100 175,200 15 40,80,120,160,200,240 40,80 9 62,000
SS400 275,300 50,75,100 175,200 20 40,80,120,160,200,240 40,80 12 82,000
SS400 275,300 125,150 100,125,150 10,12 40,80,120,160,200,240 40,80,120 6 66,000
SS400 275,300 125,150 100,125,150 15 40,80,120,160,200,240 40,80,120 9 82,500
SS400 275,300 125,150 100,125,150 20 40,80,120,160,200,240 40,80,120 12 112,000
SS400 275,300 125,150 175,200 10,12 40,80,120,160,200,240 40,80,120 6 74,500
SS400 275,300 125,150 175,200 15 40,80,120,160,200,240 40,80,120 9 92,500
SS400 275,300 125,150 175,200 20 40,80,120,160,200,240 40,80,120 12 124,000
A5052 100,125,150 50,75,100 100,125,150 10,12 40,80,120 40,80 6 35,800
A5052 100,125,150 50,75,100 100,125,150 15 40,80,120 40,80 9 39,900
A5052 100,125,150 50,75,100 175,200 10,12 40,80,120 40,80 6 37,200
A5052 100,125,150 50,75,100 175,200 15 40,80,120 40,80 9 46,600
A5052 100,125,150 125,150 100,125,150 10,12 40,80,120 40,80,120 6 47,900
A5052 100,125,150 125,150 100,125,150 15 40,80,120 40,80,120 9 60,000
A5052 100,125,150 125,150 175,200 10,12 40,80,120 40,80,120 6 56,500
A5052 100,125,150 125,150 175,200 15 40,80,120 40,80,120 9 69,500
A5052 175,200 50,75,100 100,125,150 10,12 40,80,120,160 40,80 6 37,200
A5052 175,200 50,75,100 100,125,150 15 40,80,120,160 40,80 9 46,600
A5052 175,200 50,75,100 175,200 10,12 40,80,120,160 40,80 6 42,400
A5052 175,200 50,75,100 175,200 15 40,80,120,160 40,80 9 53,500
A5052 175,200 125,150 100,125,150 10,12 40,80,120,160 40,80,120 6 56,500
A5052 175,200 125,150 100,125,150 15 40,80,120,160 40,80,120 9 69,500
A5052 175,200 125,150 175,200 10,12 40,80,120,160 40,80,120 6 64,000
A5052 175,200 125,150 175,200 15 40,80,120,160 40,80,120 9 80,000
A5052 225,250 50,75,100 100,125,150 10,12 40,80,120,160 40,80 6 42,400
A5052 225,250 50,75,100 100,125,150 15 40,80,120,160 40,80 9 53,500
A5052 225,250 50,75,100 175,200 10,12 40,80,120,160 40,80 6 47,900
A5052 225,250 50,75,100 175,200 15 40,80,120,160 40,80 9 60,000
A5052 225,250 125,150 100,125,150 10,12 40,80,120,160 40,80,120 6 64,000
A5052 225,250 125,150 100,125,150 15 40,80,120,160 40,80,120 9 80,000
A5052 225,250 125,150 175,200 10,12 40,80,120,160 40,80,120 6 71,500
A5052 225,250 125,150 175,200 15 40,80,120,160 40,80,120 9 89,500
A5052 275,300 50,75,100 100,125,150 10,12 40,80,120,160,200,240 40,80 6 47,900
A5052 275,300 50,75,100 100,125,150 15 40,80,120,160,200,240 40,80 9 60,000
A5052 275,300 50,75,100 175,200 10,12 40,80,120,160,200,240 40,80 6 53,500
A5052 275,300 50,75,100 175,200 15 40,80,120,160,200,240 40,80 9 66,000
A5052 275,300 125,150 100,125,150 10,12 40,80,120,160,200,240 40,80,120 6 71,500
A5052 275,300 125,150 100,125,150 15 40,80,120,160,200,240 40,80,120 9 89,500
A5052 275,300 125,150 175,200 10,12 40,80,120,160,200,240 40,80,120 6 80,000
A5052 275,300 125,150 175,200 15 40,80,120,160,200,240 40,80,120 9 100,000

材質・熱処理・表面処理

名称 材質
フリーブラケット FBS：SS400FBA：A5052

特長

■AからF寸法は、表より自由に選択できます。
■また、リブ(シングル･ダブル)タイプも同様に選択でき、シングル･ダブルとも同価格です。
■E寸法はA寸法より、またF寸法はB寸法より少ない値の選択となります。
ご注文例：
FBS(タイプ)-100(A)-50(B)-100(C)-10(D)-40(E)-40(F)-S(リブ)

[精度]直角度0.05/100
[リブ]SS400：S(シングル)、A5052：W(ダブル)

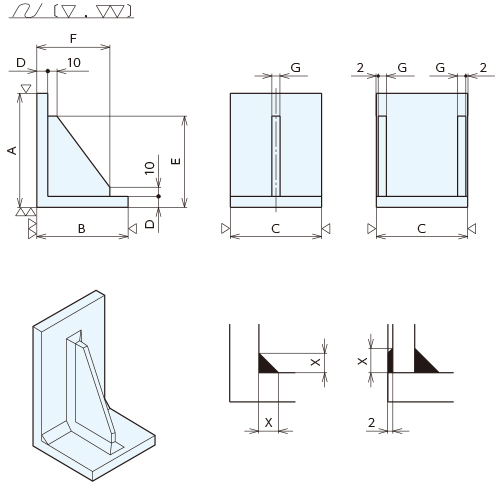

寸法図・サイズ表
