• ERON

RoHS対応

フリーALプレート

E-9794

  • フリーALプレート PIC1

  • フリーALプレート PIC1

仕様/価格

No.が決まったら、在庫情報・CADデータ・製品BOXから詳細確認や問い合わせに進めます。
A B C
5 6 8 10 12 15 20 25 30
60-90 60-90 5,250 5,400 5,600 6,350 6,500 6,800 7,850 8,250 9,300
60-90 91-120 5,600 5,750 5,950 6,800 7,050 7,400 8,600 9,100 10,200
60-90 121-150 6,350 6,500 6,850 7,900 8,150 8,700 10,200 11,200 12,600
60-90 151-180 6,700 6,900 7,300 8,500 8,800 9,450 11,200 12,100 13,800
60-90 181-210 7,100 7,300 7,800 8,950 9,450 10,100 12,000 13,200 15,000
60-90 211-240 7,550 7,900 8,400 9,700 10,200 10,900 13,100 14,500 16,400
60-90 241-270 8,900 9,250 9,800 11,300 11,900 12,700 15,000 16,400 18,900
60-90 271-300 9,450 9,700 10,400 12,000 12,700 13,700 16,200 17,900 20,300
60-90 301-350 10,200 10,600 11,300 13,100 13,800 15,000 17,900 19,700 22,800
60-90 351-400 10,900 11,300 12,100 14,200 15,000 16,200 19,700 21,600 25,000
60-90 401-450 11,700 12,100 13,000 15,200 16,200 17,800 21,400 23,700 27,200
60-90 451-500 13,200 13,800 14,900 17,200 18,500 20,000 23,800 26,400 30,500
91-120 91-120 6,800 6,950 7,400 8,600 8,950 9,550 11,400 12,500 14,200
91-120 121-150 7,250 7,450 8,000 9,250 9,700 10,500 12,600 13,700 15,800
91-120 151-180 7,600 8,000 8,600 10,000 10,600 11,400 13,700 15,000 17,300
91-120 181-210 8,100 8,400 9,050 10,600 11,300 12,400 14,800 16,300 18,900
91-120 211-240 8,700 9,050 9,800 11,600 12,400 13,400 16,200 18,200 21,100
91-120 241-270 10,100 10,600 11,400 13,100 14,100 15,200 18,600 20,500 23,800
91-120 271-300 10,700 11,200 12,000 14,200 15,100 16,400 20,100 22,300 25,900
91-120 301-350 11,500 12,000 13,100 15,600 16,500 18,500 22,200 25,000 29,000
91-120 351-400 12,500 13,000 14,300 16,800 18,200 20,100 24,600 27,700 32,100
91-120 401-450 13,200 14,100 15,600 18,200 19,700 21,700 26,600 30,300 35,000
91-120 451-500 15,000 15,800 17,300 20,300 21,800 24,500 29,700 33,600 39,200
121-150 121-150 7,600 8,050 8,600 10,100 10,600 11,500 13,800 15,100 17,500
121-150 151-180 8,150 8,600 9,250 10,800 11,500 12,500 15,000 16,500 19,400
121-150 181-210 8,650 9,050 9,800 11,500 12,400 13,400 16,300 18,200 21,200
121-150 211-240 9,300 9,700 10,600 12,600 13,400 14,800 18,500 20,200 23,600
121-150 241-270 10,700 11,300 12,400 14,300 15,200 16,800 21,200 23,000 26,600
121-150 271-300 11,400 11,900 13,000 15,200 16,300 18,200 22,200 25,000 29,000
121-150 301-350 12,400 13,000 14,300 16,800 18,200 20,200 24,800 28,100 32,400
121-150 351-400 13,200 14,100 15,600 18,500 20,000 22,200 27,000 31,000 36,000
121-150 401-450 14,200 15,000 16,500 20,000 21,500 23,900 29,600 33,800 39,600
121-150 451-500 16,000 16,800 18,700 22,200 23,900 26,700 33,200 37,600 43,900
151-180 151-180 8,600 8,900 10,100 11,400 12,000 13,100 15,800 17,900 20,500
151-180 181-210 9,250 9,600 10,800 12,500 13,200 14,600 17,900 20,200 23,500
151-180 211-240 9,850 10,400 11,700 13,600 14,600 16,100 20,100 22,300 26,100
151-180 241-270 11,400 11,900 13,200 15,600 16,400 18,500 22,900 25,200 29,400
151-180 271-300 12,000 12,700 14,100 16,400 17,900 20,000 24,500 27,500 31,900
151-180 301-350 13,000 13,800 15,200 18,200 19,700 21,800 27,000 31,000 36,000
151-180 351-400 14,100 15,000 16,500 20,000 21,500 24,200 29,900 34,400 39,900
151-180 401-450 15,100 16,100 18,100 21,500 23,600 26,300 32,500 37,600 43,900
151-180 451-500 17,000 18,100 20,200 23,800 26,200 29,400 36,200 41,600 48,800
181-210 181-210 9,700 10,200 11,900 13,200 14,300 16,000 19,600 21,800 25,300
181-210 211-240 10,500 11,200 12,700 14,500 15,800 17,500 21,500 24,600 28,400
181-210 241-270 12,000 12,700 14,200 16,400 17,900 20,000 24,500 27,700 32,100
181-210 271-300 12,800 13,600 15,000 17,800 19,200 21,500 26,400 30,200 35,000
181-210 301-350 13,800 14,800 16,300 19,600 21,200 23,800 29,500 33,700 39,500
181-210 351-400 14,900 16,000 17,900 21,400 23,500 26,200 32,500 37,400 43,900
181-210 401-450 16,100 17,200 19,400 23,300 25,200 28,800 35,600 41,200 48,200
181-210 451-500 18,100 19,200 21,600 25,500 28,200 31,800 39,600 45,700 54,000
211-240 211-240 10,700 11,300 12,700 14,900 16,100 17,900 21,800 26,200 26,300
211-240 241-270 12,500 13,100 14,800 17,300 18,700 20,900 25,500 29,400 32,500
211-240 271-300 13,400 14,300 16,000 18,900 20,400 23,000 28,400 32,500 38,200
211-240 301-350 14,600 15,700 17,500 20,900 22,900 25,500 31,900 36,800 42,900
211-240 351-400 15,800 16,800 19,000 22,900 25,000 28,300 35,100 40,900 47,800
211-240 401-450 17,000 18,200 20,500 24,800 27,000 31,000 38,700 44,800 53,000
211-240 451-500 18,900 20,300 23,000 27,500 30,200 34,400 42,900 49,700 59,000
241-270 241-270 12,900 13,700 15,100 18,100 19,600 21,800 26,900 31,000 36,000
241-270 271-300 14,200 15,000 16,800 20,200 21,800 24,800 30,600 35,100 41,200
241-270 301-350 15,200 16,300 18,600 22,200 24,500 27,500 34,400 39,800 46,600
241-270 351-400 16,500 17,900 20,300 24,500 26,600 30,300 38,100 44,200 52,000
241-270 401-450 17,900 19,200 21,800 26,300 29,300 33,300 41,600 48,400 57,500
241-270 451-500 20,000 21,500 24,600 29,400 32,200 36,800 46,000 54,000 63,500
271-300 271-300 15,600 16,400 18,900 22,500 24,800 28,100 34,800 40,400 47,000
271-300 301-350 16,800 18,200 20,500 24,900 27,200 31,100 39,200 45,500 53,500
271-300 351-400 18,500 19,700 22,800 27,000 30,200 34,600 43,500 50,500 60,000
271-300 401-450 19,700 21,400 24,600 29,500 32,900 37,900 47,600 56,500 65,500
271-300 451-500 21,700 23,700 27,200 32,500 36,200 41,600 52,500 62,500 73,000

材質・熱処理・表面処理

名称 材質
フリーALプレート A5052P-H112

特長

■A・B寸法は、1mm単位で製作いたします。
■ご注文例：FAL-100-150-15（FAL-A-B-C）

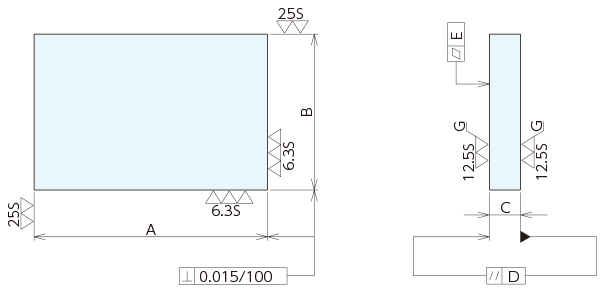

寸法図・サイズ表





■寸法許容差



A・B A・Bの許容差
99以下 ±0.2
100-250 ±0.25
251以下 ±0.4





C Cの許容差 D E
5,6 ±0.04 0.02/100 0.1
8 ±0.05 0.03/100 0.1
10、12 ±0.05 0.03/100 0.05
15 ±0.08 0.05/100 0.05
20 ±0.10 0.07/100 0.05
25 ±0.12 0.09/100 0.05
30 ±0.15 0.11/100 0.05
