• ERON

RoHS対応

フリーSSプレート

E-9793

  • フリーSSプレート PIC1

  • フリーSSプレート PIC1

仕様/価格

No.が決まったら、在庫情報・CADデータ・製品BOXから詳細確認や問い合わせに進めます。
A B C
8-10 11-13 14-16 17-19 20-22 23-25 26-28 29-32 33-36 37-40 41-45 46-50
60-90 60-90 5,700 5,250 5,400 5,600 5,700 5,850 6,050 6,350 6,700 7,050 7,800 8,150
60-90 91-120 6,250 5,850 6,000 6,200 6,350 6,500 6,850 7,150 7,550 8,050 8,900 9,350
60-90 121-150 6,450 6,050 6,350 6,500 6,700 6,950 7,300 7,600 8,150 8,650 9,550 10,100
60-90 151-180 6,800 6,350 6,500 6,800 6,950 7,150 7,500 7,900 8,250 8,800 9,800 10,400
60-90 181-210 7,450 7,050 7,050 7,250 7,550 7,850 8,200 8,700 9,300 9,850 11,200 11,700
60-90 211-240 8,750 8,050 8,500 8,750 9,100 9,450 10,000 10,500 11,200 11,800 13,100 13,800
60-90 241-270 8,950 8,250 8,950 9,300 9,550 9,850 10,600 11,300 11,900 12,700 14,200 14,900
60-90 271-300 9,300 8,650 9,250 9,500 9,850 10,200 10,900 11,700 12,500 13,200 14,900 15,700
60-90 301-350 10,200 9,500 10,100 10,500 10,900 11,500 12,400 13,100 14,100 14,900 16,400 17,800
60-90 351-400 11,200 10,300 10,900 11,500 11,900 12,800 13,700 14,600 15,600 16,300 18,500 19,600
60-90 401-450 12,900 12,000 12,700 13,100 13,700 14,500 15,600 16,400 17,800 19,000 21,200 22,500
60-90 451-500 13,800 12,800 13,600 14,200 14,600 15,200 16,400 17,800 18,900 20,200 22,800 24,200
91-120 91-120 6,500 6,200 6,400 6,550 6,850 7,050 7,300 7,600 8,100 8,650 9,550 10,100
91-120 121-150 6,850 6,450 6,800 7,050 7,250 7,500 7,900 8,150 8,750 9,300 10,400 10,900
91-120 151-180 7,150 6,850 7,150 7,450 7,800 8,050 8,500 8,800 9,450 10,100 11,300 11,900
91-120 181-210 7,500 7,150 7,500 7,900 8,200 8,600 8,950 9,450 10,000 10,600 11,900 12,600
91-120 211-240 9,350 8,700 9,100 9,550 10,000 10,400 11,200 11,900 12,700 13,600 15,000 16,000
91-120 241-270 9,600 9,050 9,600 10,200 10,600 10,900 11,800 12,600 13,200 14,100 15,700 16,400
91-120 271-300 10,000 9,350 9,850 10,400 10,800 11,400 12,100 13,000 13,800 14,600 16,300 17,300
91-120 301-350 10,500 10,000 10,600 11,300 11,700 12,400 13,100 14,200 15,000 16,000 17,900 19,000
91-120 351-400 13,000 12,000 12,800 13,200 13,800 14,500 15,700 16,800 17,900 18,900 21,400 22,800
91-120 401-450 14,300 13,400 14,200 14,900 15,600 16,200 17,500 18,700 20,000 21,100 23,700 25,100
91-120 451-500 14,900 14,100 14,900 15,800 16,300 17,200 18,600 20,000 21,200 22,300 25,100 26,700
121-150 121-150 7,500 7,100 7,500 7,850 8,100 8,600 8,900 9,350 10,100 10,700 11,900 12,700
121-150 151-180 8,100 7,800 8,150 8,600 8,950 9,450 9,850 10,400 11,200 11,900 13,200 14,200
121-150 181-210 8,700 8,200 8,800 9,300 9,700 10,200 10,800 11,400 12,100 13,000 14,600 15,700
121-150 211-240 10,200 9,800 10,500 10,900 11,500 12,000 12,700 13,200 14,300 15,100 17,000 18,100
121-150 241-270 10,700 10,300 10,900 11,400 11,900 12,900 13,600 14,300 15,200 16,300 18,500 19,600
121-150 271-300 11,300 10,800 11,500 12,100 12,800 13,600 14,200 15,000 16,100 17,000 19,200 20,300
121-150 301-350 13,000 11,700 12,500 13,200 13,900 14,800 15,700 16,300 17,800 19,000 21,400 22,800
121-150 351-400 15,000 13,900 14,900 15,800 16,400 17,300 18,500 19,200 20,500 22,200 25,100 26,700
121-150 401-450 16,500 15,700 16,500 17,800 18,600 19,700 20,400 21,500 23,300 25,000 28,200 29,900
121-150 451-500 17,800 16,400 17,900 18,900 20,000 21,100 21,800 23,300 25,000 26,700 30,300 32,200
151-180 151-180 8,800 8,400 8,950 9,350 9,850 10,400 10,900 11,500 12,500 13,200 14,900 15,800
151-180 181-210 9,500 9,050 9,700 10,200 10,800 11,400 12,000 12,700 13,600 14,500 16,300 17,500
151-180 211-240 10,700 10,200 10,700 11,300 11,700 12,400 12,800 13,200 14,200 15,100 17,000 17,900
151-180 241-270 11,700 11,300 11,900 12,600 13,100 14,300 15,000 16,000 17,200 18,500 20,500 21,700
151-180 271-300 12,100 11,800 12,700 13,400 14,200 15,000 15,800 16,500 18,100 19,200 21,600 23,300
151-180 301-350 13,800 13,100 13,800 14,800 15,600 16,400 17,300 18,600 20,000 21,400 24,200 25,500
151-180 351-400 15,200 14,600 16,400 17,500 18,500 19,600 20,400 21,600 23,500 25,000 28,900 30,600
151-180 401-450 17,800 16,800 18,600 19,700 20,500 21,800 23,000 24,200 26,200 28,100 32,100 34,300
151-180 451-500 19,400 18,500 19,700 21,200 22,200 23,600 24,800 26,100 28,200 30,200 34,800 36,900
181-210 181-210 10,200 9,800 10,600 11,300 11,800 12,500 13,100 13,900 15,000 16,100 18,200 19,400
181-210 211-240 11,900 11,200 11,300 11,800 12,400 12,600 13,100 13,800 14,800 15,700 17,800 18,700
181-210 241-270 12,900 12,400 12,600 13,200 14,100 14,900 15,700 16,400 17,900 19,200 21,500 23,000
181-210 271-300 14,300 13,600 13,800 14,800 15,600 16,400 17,300 18,500 20,000 21,400 24,200 25,500
181-210 301-350 15,800 14,900 15,000 16,200 17,000 18,200 19,200 20,300 22,200 23,800 26,900 28,800
181-210 351-400 18,100 17,200 18,900 20,200 21,200 22,300 23,600 24,900 26,600 28,800 32,400 34,700
181-210 401-450 19,600 18,700 20,300 21,600 22,900 24,200 25,300 26,700 29,000 31,200 35,500 37,900
181-210 451-500 21,100 20,100 21,600 23,500 24,600 26,100 27,200 29,000 31,200 33,700 38,300 41,000
211-240 211-240 14,300 13,600 13,900 14,600 15,600 16,100 16,800 17,800 19,000 20,300 23,000 24,600
211-240 241-270 16,100 15,000 15,600 16,200 17,300 18,100 18,900 20,000 21,400 22,900 25,900 27,500
211-240 271-300 16,500 15,700 16,300 17,200 18,200 19,000 20,000 20,900 22,500 24,200 27,200 29,300
211-240 301-350 18,100 17,000 17,900 18,900 20,100 21,100 21,800 23,300 25,100 26,900 30,600 32,500
211-240 351-400 20,100 19,000 20,200 21,400 22,500 23,800 25,000 26,300 28,400 30,600 34,700 36,900
211-240 401-450 21,200 20,200 21,600 23,000 24,500 25,900 27,000 28,800 31,000 33,400 38,100 40,400
211-240 451-500 22,500 21,400 23,300 24,900 26,100 27,900 29,400 31,000 33,500 36,100 41,100 43,900
241-270 241-270 15,600 14,500 15,600 17,200 18,500 19,200 20,100 21,100 22,800 24,500 27,700 29,400
241-270 271-300 17,000 16,000 17,200 18,100 19,000 20,200 21,200 22,200 23,900 25,900 29,300 31,100
241-270 301-350 19,400 18,200 19,700 20,500 21,700 23,300 24,500 25,500 27,700 29,600 33,600 35,800
241-270 351-400 21,100 19,700 21,400 22,800 23,800 25,200 26,600 28,100 30,300 32,500 37,000 39,600
241-270 401-450 22,300 21,200 23,000 24,600 25,500 27,500 29,000 30,500 33,300 35,600 40,500 43,400
241-270 451-500 23,800 22,800 24,800 26,200 27,700 29,600 31,100 33,200 35,800 38,500 43,900 46,900
271-300 271-300 18,900 17,800 19,000 20,200 21,200 22,500 23,700 25,000 26,900 29,300 33,300 35,100
271-300 301-350 21,400 20,200 21,700 23,300 24,500 25,900 27,200 28,800 31,100 33,500 38,100 40,400
271-300 351-400 23,300 21,700 23,800 25,200 26,600 28,300 29,900 31,700 34,400 36,900 42,100 45,000
271-300 401-450 25,200 23,800 25,500 27,200 28,900 30,800 32,500 34,600 37,400 40,400 46,000 49,300
271-300 451-500 26,400 25,200 27,500 29,500 31,100 33,400 35,000 37,100 40,500 43,900 49,900 54,000

材質・熱処理・表面処理

名称 材質
フリーSSプレート SS400

特長

■A・B・C寸法は、各々1mm単位で製作いたします。
■C寸法の許容差は、FSAタイプ：+0.1～+0.3FSBタイプ：±0.1があります。
■同サイズであれば、FSA、FSBいずれも同価格です。
■ご注文例：FSA-100-150-30（タイプ-A-B-C）

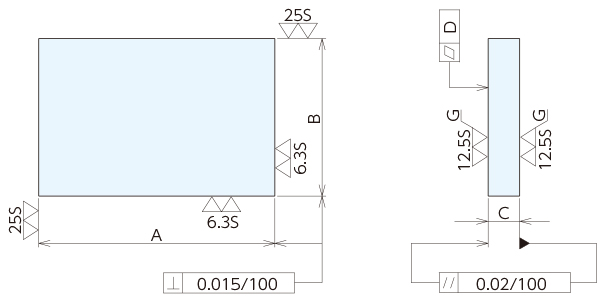

寸法図・サイズ表



A.B A.Bの許容差
99以下 ±0.2
100-250 ±0.25
251以上 ±0.4



タイプ C
FSA

+0.3

+0.1
FSB ±0.1



C D(平面度)
8-15 0.030/100
16-25 0.015/100
26以上 0.012/100
